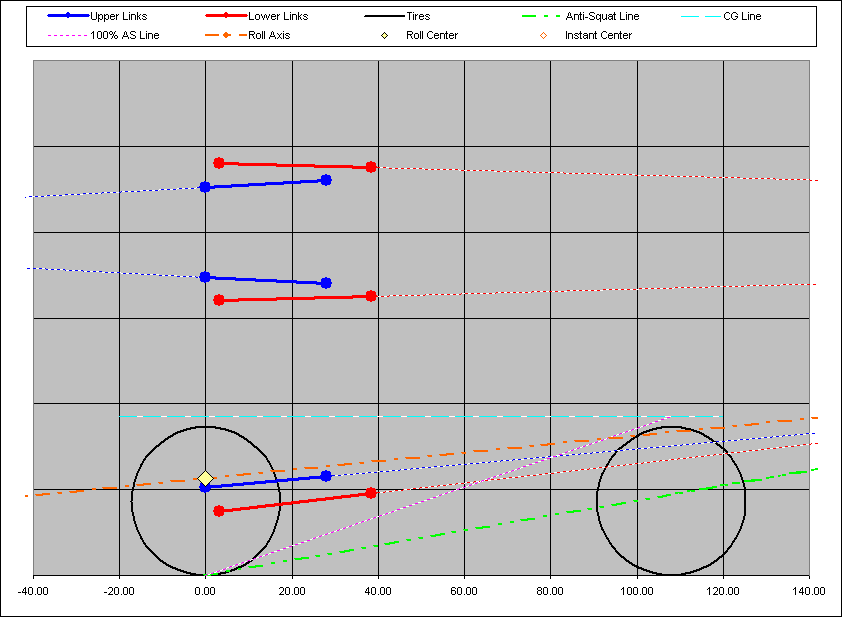

4 Link Calculator v2.0  -  Vector-Based with Graphical Worksheet Add-In   = Mess with these cells
Vehicle Specifications:   Suspension Geometry:     Geometry Summary:       Created 2003.12.01
Wheelbase 108.0 in Upper Links x y z   Anti-Squat 50.73 %   by
Track Width 72.00 in Frame End 28.00[1] 12.00[2] 23.00[3] in Roll Center Height 22.52 in   Dan Barcroft
Tire Diameter 34.50 in Axle End 0.00[4] 10.50[5] 20.50[6] in Roll Axis Angle 5.69 degrees ("-" = roll understeer; "+" = roll oversteer) & Greg Blanchette
Tire Rolling Radius 6.00 in Lower Links x y z   Instant Center X-Axis 242.62 in
Tire Width 11.00 in Frame End 38.50[7] 15.00[8] 19.00[9] in Instant Center Z-Axis 42.16 in
Sprung Mass CG 'Z' 37.00 in Axle End 3.25[10] 16.00[11] 15.00[12] in
Weight 5,200 lb
[1]
Forward from rear axle centerline
[2]
This is half (1/2) of your upper link horizontal separation at the frame
[3]
Height from ground
[4]
Forward from rear axle centerline
[5]
This is half (1/2) of your upper link horizontal separation at the axle
[6]
Height from ground
[7]
Forward from rear axle centerline
[8]
This is half (1/2) of your lower link horizontal separation at the frame
[9]
Height from ground
[10]
Forward from rear axle centerline
[11]
This is half (1/2) of your lower link horizontal separation at the axle end
[12]
Height from ground
